1:72 comparison F-86 Saber Fujimi vs Heller, or, Nobody is Perfect!

In 2011, I compared Heller, Hobby Craft (now issued by Academy) and Fujimi F-86F Sabers but did not have any scale drawings to check accuracy.   I’ve gotten my hands on some Japanese 1:72 scale drawings and checked the Fujimi, Heller and a High Planes conversion fuselage (I no longer have the Hobby Craft kit).

Click pics to make bigger

Part One: Heller, Fujimi & Hobbycraft F-86 Sabre kits compared



Kit Bashing, Reviews

1/72 REVISED comparison A-7 Corsair 2: Fujimi, ESCI, Airfix, Hasegawa, Matchbox, Revell & Hobby Boss. More reason not to trust scale drawings?


I’ve collected a few LTV A-7 Corsair 2 kits in 1/72 scale, and noticed a lot of difference in shape.  I’ve also learned that the latest and greatest kit issue from Asia isn’t so great.

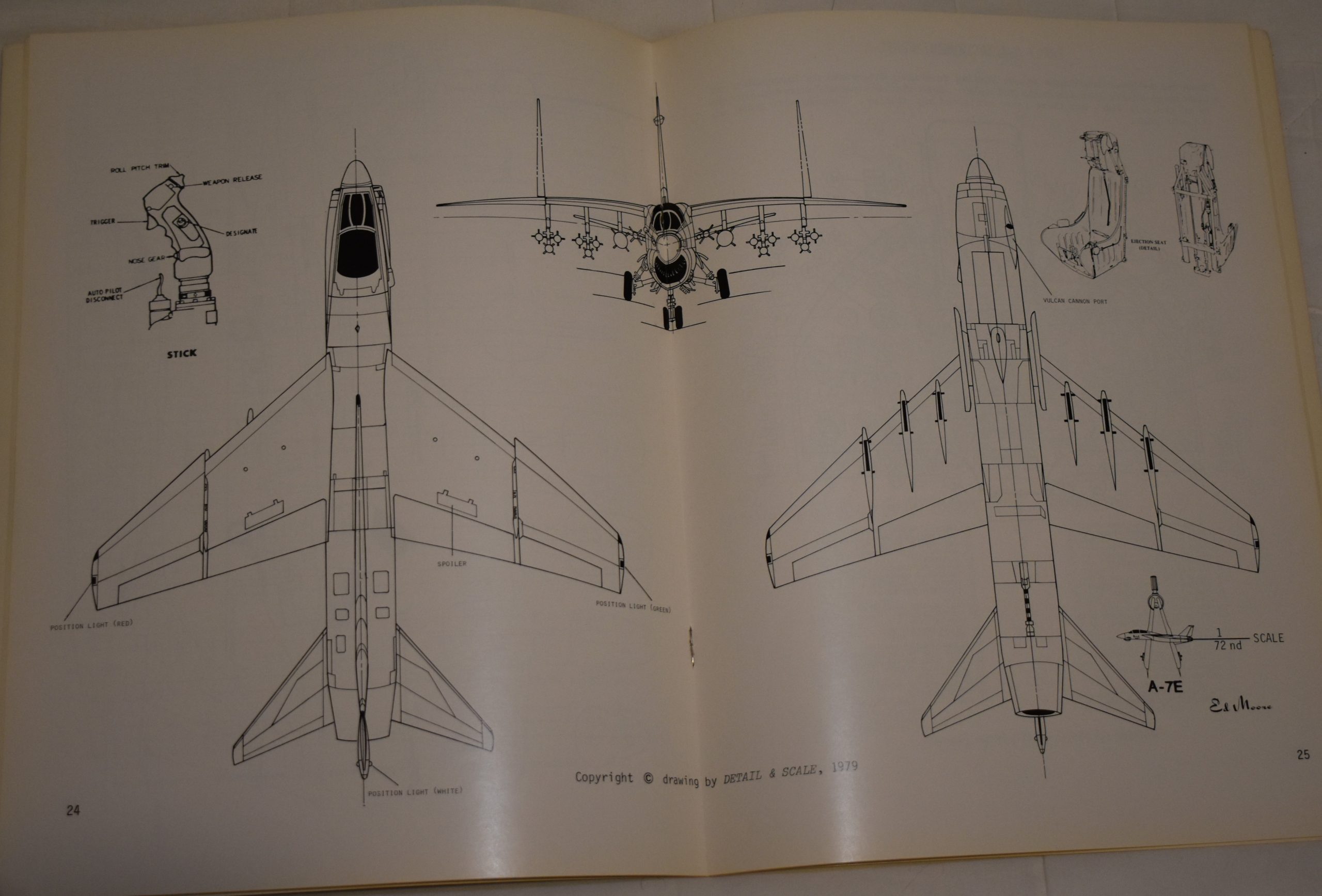

Update: I recently got the ancient 1979 The A-7 Corsair II in Detail & Scale and immediately noticed a difference in the Ed Moore scale drawings and the Bunrin-Do (1989 #18 Famous Airplanes of the World: LTV A-7 Corsair II Navy Version) drawings I originally used for this review.  The Bunrin-Do drawings look much better than the Ed Moore drawings but does that mean they’re more accurate?

Click the pics to make bigger and read results

The Hobby Boss kit (it needs to die or be completely re-tooled) is disappointing dimensionally, even the Mark 82 bombs are incredibly anorexic!  The Hobby Boss main wing is almost right on with the Bunrin-Do drawings. The elevators are accurate close to the fuselage, but start to slightly narrow at the tip (but nothing like the narrowness of the other kits).   Despite the fuselage being too narrow, the canopy is slightly too fat.  If you think the Hobby Boss kit fuselage is too long and skinny, wait until you compare it to the Ed Moore drawings; it’s anorexic!  Amazingly the wing is almost spot-on in shape, span and chord! The elevators are ever-so slightly short in span. The canopy is still fat.

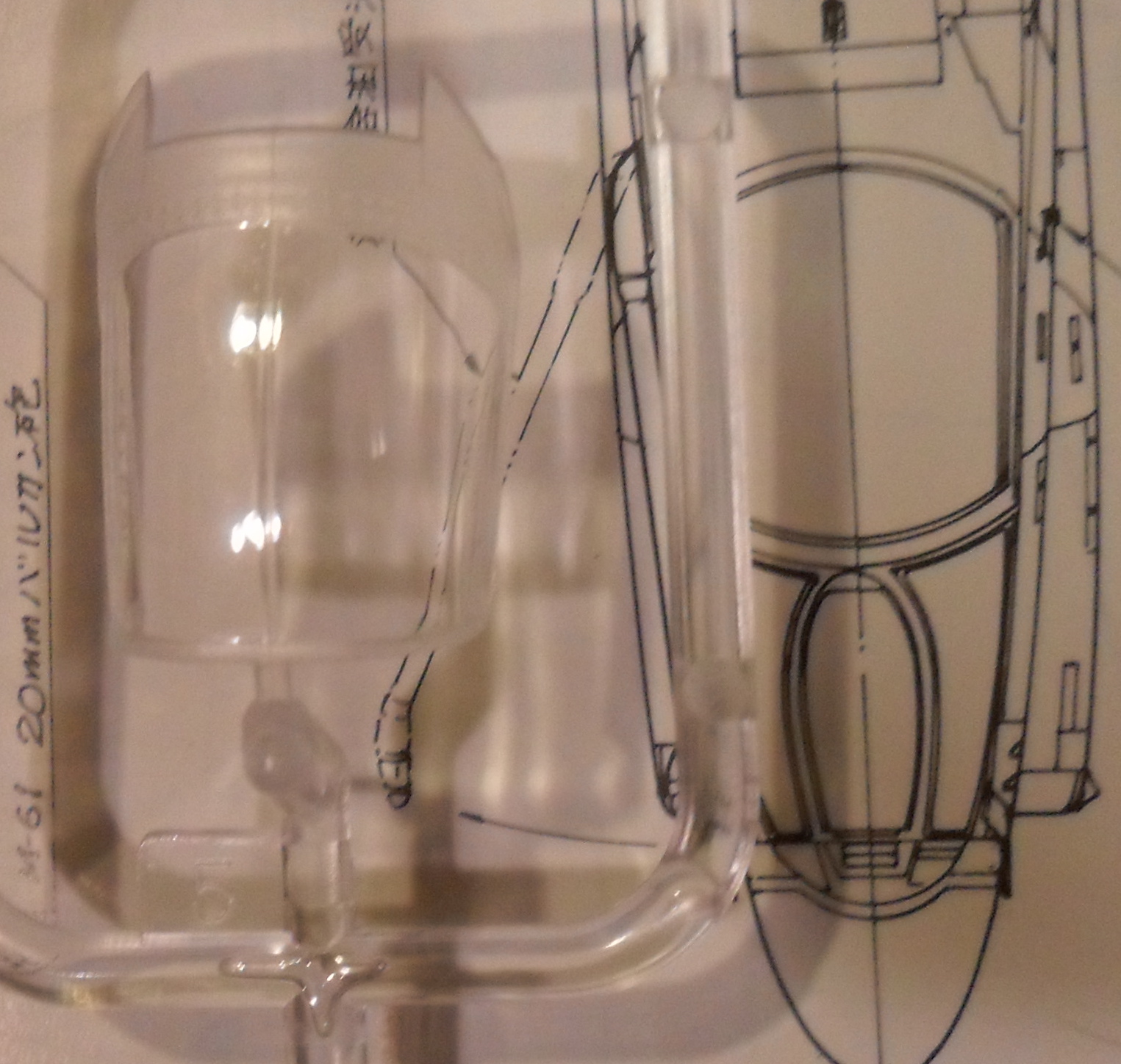

The 'mold parting' line on this Hobby Boss canopy is not in the right place to be the result of mold halves, but matches the center line used by drafters of scale drawings!

The ‘mold parting’ line on this Hobby Boss canopy matches the center line used by drafters of scale drawings!

And I think I’ve discovered why many Chinese made kits have ‘mold parting’ lines down the center of their canopies: Perhaps they’re not mold parting lines, but the lines from scale drawings?  However the Chinese companies are transcribing scale plans of aircraft to the mold making process, they’re including the line drafters use to indicate the center-line of the fuselage?

(Note: I didn’t check windshields, just canopies.)

The ancient Hasegawa kit (still being issued) fuselage has good shape but is slightly short when compared to the Ed Moore drawings.  The antennae on the spine are in the wrong place.  The old issue kit is missing the ECM antenna on the vertical tail, but supposedly later issues were revised. The elevators are too small.  The wings are slightly short in span but match the shape of the drawings. The canopy profile matches the drawings but is slightly fat in cross-section.  Compared to the Bunrin-Do drawings the Hasegawa fuselage is too short.  Here’s where it gets weird, the elevators and canopy match the Bunrin-Do drawings, but the wings are even shorter in span when compared to the Ed Moore drawings!

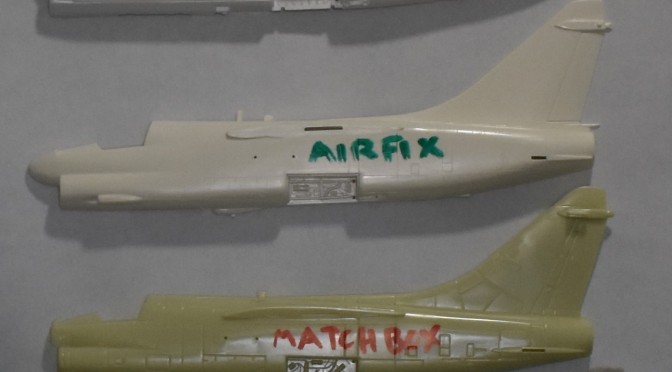

When compared to the Bunrin-Do drawings the Airfix (also issued by MPC) kit fuselage is the most accurate shape wise, but the main wings are too short in span, narrow in chord, and the wing tips are cut straight instead of being curved.  The elevators are too short with incorrect shaped tips.  The canopy looks the right width, but the rear portion of the frame is missing as it is part of the kit fuselage, so no way to pose it open.  Compared to the Ed Moore drawings the Airfix main wings have the same problem; too short, wrong shape. The elevators are not only short in span but in chord as well.  The canopy is slightly fat.  The fuselage length matches the Ed Moore drawings, but the vertical tail is further back on the spine and the antennae are in the wrong place.  Interestingly the 1979 edition of the Detail & Scale book praises the Airfix kit as being “the best kit available”.

The Matchbox kit fuselage matches the shape of the Ed Moore drawings almost perfectly (the kit was issued after the Detail & Scale book was first published) but is slightly long.  The canopy is slightly flat in profile, but matches in cross section, it is molded as a one piece canopy-windshield, and like the Airfix kit, the framing for the canopy is molded as part of the fuselage. The wing matches the span and wing tip shape of the Ed Moore drawings, but is narrow in chord.  The elevators match the drawings.  Compared to the Bunrin-Do drawings the elevators are the correct size, but the tips are the wrong shape. The wing is too short and too narrow. The canopy matches the profile and cross-section.  The fuselage is too short, and too narrow at the ass-end.

Revell’s ancient kit (repeatedly re-issued, somebody put it out of our misery!) matches the shape of the Ed Moore fuselage, but is slightly long.  The ECM antenna on the tail (apparently added to later issues of the kit) is too small.  The canopy-windshield matches the drawings, but like the Airfix and Matchbox kits, the framing for the canopy is molded as part of the fuselage.  Revell’s wing is the best as far as how it mounts to the fuselage; it is molded as part of the spine which greatly reduces the need for filling in join lines (debatable), however, the wing is the wrong shape and long in span.  The elevators have too great a sweep.  According to the Bunrin-Do drawings the wing is too short in span and too narrow. The elevators have the same sweep-back problem.  The canopy-windshield seem slightly small compared to the drawings.   Like the Matchbox kit, the fuselage is too short, and too narrow, at the ass-end.

Comparing the ESCI (re-boxed by AMT-ERTL/Italeri) main wing to the Bunrin-Do drawings it is way too short in span, and the elevators are too narrow.  The canopy seems the right width, but the rear portion of the frame is not correct.  The Ed Moore drawings say the same thing about the main wing, the elevators fair better by barely matching the drawings.  The canopy looks good.  The fuselage matches the profile of the drawing but is slightly short. The tip of the vertical tail does not match Ed Moore’s drawing, but none of the kits do as the drawing shows the tail tip being rounded, which is wrong (oh my, you mean an authoritative scale drawing is wrong?)! ESCI kits usually come with good decals.

The Fujimi main wing is barely short going by the Bunrin-Do drawings.  The elevators are way too narrow, and the canopy slightly fat with incorrect rear frame.  The fuselage matches the Ed Moore drawings.  Spine antennae are in the wrong location.  The canopy matches.  The elevators are narrow in chord and have incorrectly shaped tips.  The wing is slightly short in span due to incorrectly shaped tips.  Nice decals came with my kit.

Ordinance:  The only kits in this review with decent weapons load are the ESCI and Fujimi kits, not great, but better than the lumps of plastic you kit with the other brands.  The skinny Hobby Boss Mark 82s come with optional fuse extenders.

IFR (In-Flight Refueling):  The Matchbox kit provides IFR for USAF aircraft only.  The Airfix kit provides IFR for USN aircraft only.  Hasegawa provides IFR for USN only, which is interesting because the AMT re-box (A-693:130) comes with markings for a USAF version.  Revell’s kit has IFR for USN only, despite numerous re-issues with USAF decals.  Fujimi, ESCI and Hobby Boss provide IFRs for both USAF and USN (depending on which issue of the kit you buy).

Out of the kit manufactures I compared none are accurate overall (and none got the main wing tip shape correct).  I read from other kit builders that the only way to get an accurate 1/72 scale A-7 is to kit-bash several kits from different makers.  From my perspective, it might be done by combining the Fujimi or Airfix fuselage with the Hobby Boss wing, for a start.  If you’re planing on building a kit to enter into a highly competitive model contest then kit-bashing is your only choice, but most of us don’t have the time (or money).

The A-7 has such a unique look and all the kits capture that look despite having shape issues, so, if you’re building one just for the heck of it then save some money and buy the cheapest one you can find, and go for it.

Notes: Before re-boxing the ESCI kit, AMT also re-boxed the Matchbox kit (late 1970s) and the super-ancient Hasegawa kit (early 1970s). The AMT/Matchbox issue uses the original Matchbox artwork and the phrase “Molded in 3 Colors” (using the U.S. English spelling of the word colors).

The website ScaleMates reports the Ace Hobby Kit A-7 is a copy of the Hasegawa kit, wrong!  The Ace A-7 is a re-tooled terrible copy of the ESCI kit.  Ace offers it in A, B, D, E versions, but all are wrong, like not having the correct parts, or decals, for the version offered!  Stay away from the Ace kit.

Heller re-boxed the Airfix A-7 in the 1990s when Airfix and Heller were owned by a single parent company (Humbrol).

USAF A-7 CORSAIRS, WHATEVER HAPPENED TO?

1/48 scale comparison A-7 Corsair 2: Aurora, Revell-Monogram, ESCI, Hasegawa & Hobby Boss

Cold War Aggressor:  EA-7L THE ‘ELECTRIC’ TA-7C CORSAIR-2

Cold War Maintenance Walk Around: A-7D CORSAIR-2

1:72 F-100 SUPER SABER KIT KLASH, OR MORE REASONS WHY YOU CAN’T TRUST SCALE DRAWINGS

Business/Economics, International, U.S.

Kit Bashing & What Economic Recovery? United States to help Japan’s economy by dropping illegal tariffs, pay back Japan $26 million in illegal tariffs

“We have finally put these burdensome and potentially damaging trade disputes behind us.”-Ron Kirk, U.S. Trade Representative

For decades the U.S. has imposed high tariffs on imports (so much for free trade), claiming the tariffs were “anti-dumping” fines.   The problem is that some of the foreign products affected by those U.S. tariffs were actually cheaper in the country of origin (like plastic model kits from Japan, and some from Europe).

Even after the U.S. created World Trade Organization ruled against the U.S. (five years ago!), regarding the anti-dumping tariffs, the United States continued the unfair trade policy.

Now, in an effort to help Japan’s, and Europe’s, ailing economy, and because Japan was about to levy a similar tariff on U.S. products, the United States will end those tariffs.  The U.S. has also agreed to pay back $26 million in illegal tariffs collected on Japanese products.

The end of the anti-dumping duties also affects European countries.

Unfortunately for us model kit builders, the ending of the tariff might not help our wallets, as the Yen and Euro have gained in value against the U.S. dollar.  The Euro now worth more than the U.S. dollar, but, the Yen is still far cheaper so lets hope those prices come down on Tamiya, Fujimi, Hasegawa and coveted Fine Molds kits.

Kit Bashing, Reviews

Kit Bashing: Heller, Fujimi & Hobbycraft F-86 Sabre kits compared

Don’t throw out that 40 year old Heller kit just because it has raised surface detail.  You can always use the wheels, landing gear doors and speed brake doors.

fuselages

The fuselage of the Heller kit has a better shape, but it doesn’t come with the fuel dump (fixed easily), and the area where the elevators attach is the wrong shape (it’s too straight).  The vertical tail/rudders on the Fujimi and Hobbycraft kits are bigger in area, and taller than the Heller kit.  Fujimi and Hobbycraft have subtle recessed surface details.

f-30 wings

The F-30 wings are about the same size in all three kits.  With Hobbycraft (now issued by Academy?) you get the added benefit of separately molded slats.

f-40 wing

Surprisingly Fujimi does not make a distinction on its packaging regarding the type of wings their kits come with.  In their “JASDF” issue you get an F-86F-40 with the extended span, slated wing.  In their “Mig Mad Marine” issue you get the F-86F-30 with the in Korean War theater hard fenced wing conversion.  Fujimi’s boxes just say “F-86F” (at least on the kits I have).

intake trunks

The old Heller kit has the best detailed main wheels. The Fujimi main wheel tires are the biggest in diameter, followed by Hobbycraft.  Photos indicate that the Fujimi tires might be the correct diameter, but the Heller wheel definitely has the best detail.  All three kits have similar nose wheels.  The real F-86 used at least three types of nose wheels: Two types of spoked wheels, and a solid wheel.  Most of the pictures I’ve seen of the solid nose wheel is of South Korean and West German Sabres.

intake trunks

The Heller and Hobbycraft kits have a short intake trunk.  The Hobbycraft kit has the nose wheel bay and cockpit floor molded onto the trunk.  The Fujimi intake trunking also has the nose wheel bay and cockpit floor molded on, but is much deeper and actually goes somewhere.

fan blades

That somewhere is an incorrectly faced engine.  The fan blades should be set back more (there should be a section of venturi before the blades), and the nose cone should be larger, but who’s gonna really notice once it’s assembled?

doors

The wheel bay doors, and speed brake doors are much better, and accurately detailed on the old Heller kit.

nose gear doors

Hobbycraft has screwed up its nose gear door.  They’ve put the locator stubs on the wrong side.  Their instructions give a vague indication of placement on the correct side of the wheel bay, but if your not paying attention and simply go with the locator stubs you’ll end up with the door on the wrong side (it should be on the pilot’s left side).

elevators

All three kits have issues with their elevators.  The Hobbycraft kit has the shortest, with the least angle of sweep, and rounded tips.  The Fujimi and Heller elevators have the same angle of sweep, but with different shaped tips.  The Heller elevator is the longest of the three.  From three view drawings of F-86F-30s it doesn’t look like any of the three kit makers got it right, although Heller’s looks the closest to being correct.  The Fujimi and Hobbycraft elevators look more like earlier F-86A/E elevators (according to three view drawings).

Other notes: The cockpit details on the Heller kit are worthless.  Fujimi has a nice looking instrument panel (not necessarily accurate, but it looks good), and it looks like Hobbycraft has copied the Fujimi panel.  The detail on the side consoles, in all three kits, is spurious at best.  All three kits have similar looking seats.  All three kits have canopies that can be posed open.  The Heller and Hobbycraft kits come with external fuel tanks, while the Fujimi kit comes with Sidewinder missiles as well as external fuel tanks.

You can improve the Fujimi and Hobbycraft kits with some of the parts from the Heller kit, but you’d still need aftermarket photo etch, or resin parts to improve the wheel bays and cockpits (or scratch build your own).

A note on references: In one book I have (no names/titles mentioned) there is a color photo of a South Korean F-86, with the -40 extended slat wing (and solid nose wheel).  At the back of the book is a color profile of the same aircraft, except it shows the -30 hard fenced wing.  It’s just an example to show that you can’t trust a profile, instead use photos of the real thing.
